12.1 Color
Physical aspects of color

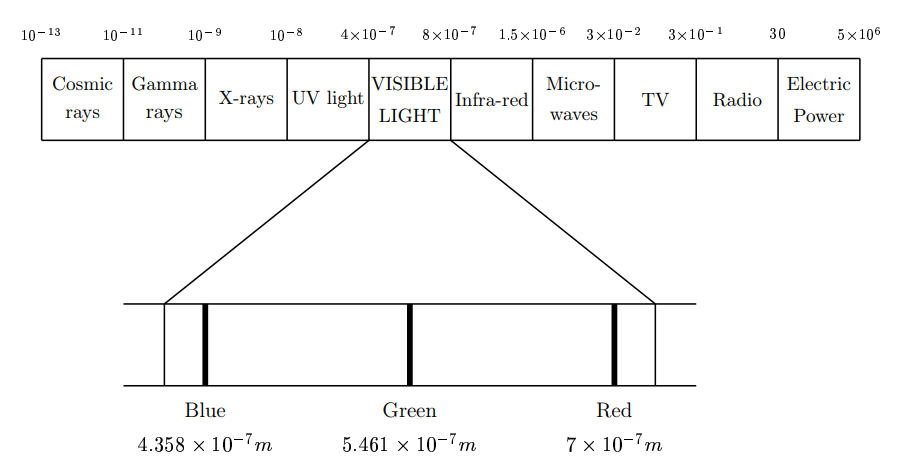

Visible light : part of electromagnetic spectrum (energy takes form of waves of varying wavelength)
Perceptual aspects of color
Color = being made up of varying amonts of primary colors (red, green, blue)

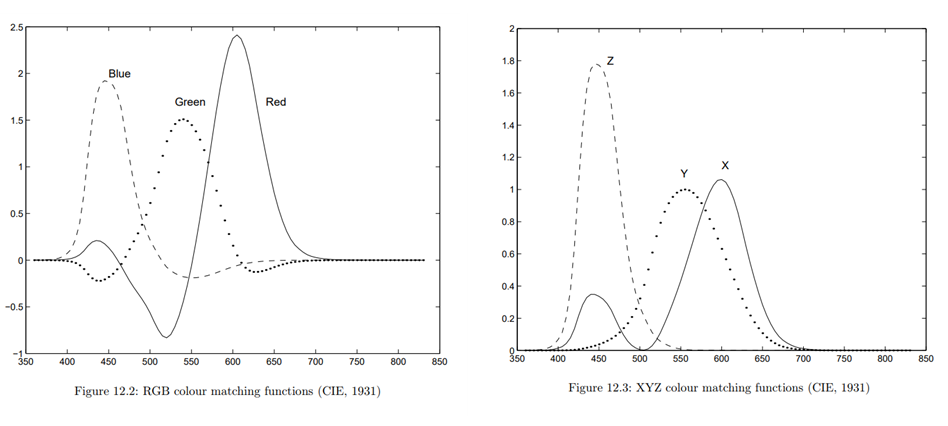

Color matching functions (CIE)
Y component : luminance or perceived brightness of color → Sum = 1, symmetric about middle of visible spectrum
12.2 Color models
Color model : a method for specifying colors in some standard way → using 3D coordinate system
1) RGB
RGB : standard for display of colors : on computer monitors, but not very good way of describing colors (cube space)
2) HSV
HSV : more intuitive method of describing colors (cone color space)
Hue (H) : true color attribute (red, green, blue, orange, yellow, ...)
Saturarion (S) : amount by which color as been diluted with white
The more white, the lower saturation (light color = low saturation ↔ deep color = high saturation)
Value (V) : degree of brightness (dark color = low intensity ↔ lit color = high intensity)
intensity : independent of color information (very useful model for img processing)
Conversion bw RGB and HSV
[MATLAB] rgb2hsv OR hsv2rgb function
>> rgb2hsv([0.2 0.4 0.6])
ans =
0.5833 0.6667 0.6000
3) YIQ
YIQ : linear transformation of RGB
Y : luminance (with intensity)
I and Q : color information
⇒ Human visual system assigns more intensity (Y) to green (G) component of img than R and B
Conversion bw RGB and YIQ
[MATLAB] rgb2ntsc OR ntsc2rgb function
12.3 Color images in MATLAB
>> x=imread('lily.tif');
>> size(x)
ans =
186 230 3

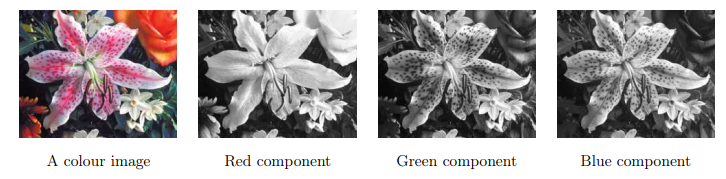

>> imshow(x)
>> figure,imshow(x(:,:,1))
>> figure,imshow(x(:,:,2))
>> figure,imshow(x(:,:,3))
>> xh=rgb2hsv(x);
>> imshow(xh(:,:,1))
>> figure,imshow(xh(:,:,2))
>> figure,imshow(xh(:,:,3))

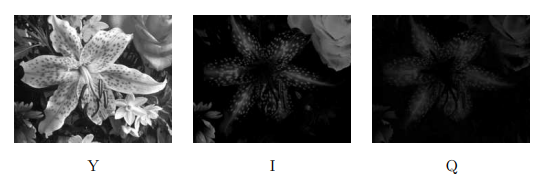

>> xn=rgb2ntsc(x);
>> imshow(xn(:,:,1))
>> figure,imshow(xn(:,:,2))
>> figure,imshow(xn(:,:,3))
12.4 Pseudocoloring
1) Intensity Slicing
2) Grey-Color Transformations
12.5 Processing of color images
1) Contrast Enhancement
2) Spatial Filtering
3) Noise Reduction
4) Edge Detection
